3 | Aristocrat nConnect Interface BackOffice Setup

This article provides a BackOffice setup guide for the Aristocrat nConnect interface including setup at Venue and Workstation level, the Scheduled Job. Oasis Loyalty is a customer experience management system which prioritizes customer service and experience to create the best service for customers.

This article provides a BackOffice setup guide for the Aristocrat nConnect interface including setup at Venue and Workstation level, & the Scheduled Job.

Oasis Loyalty is a customer experience management system which prioritizes customer service and experience to create the best service for customers.

Prerequisites

  • Minimum Bepoz version of 4.7.2.9 & onwards
  • For an operator to be able to set up Aristocrat nConnect, the following privileges must be enabled
    • Venue Maintenance "Flags" Tab
    • System Setup: "All System Setup Flags"

Backoffice Setup

  • There are three (3) BackOffice setups that need to be configured which allow BackOffice to connect to CALink

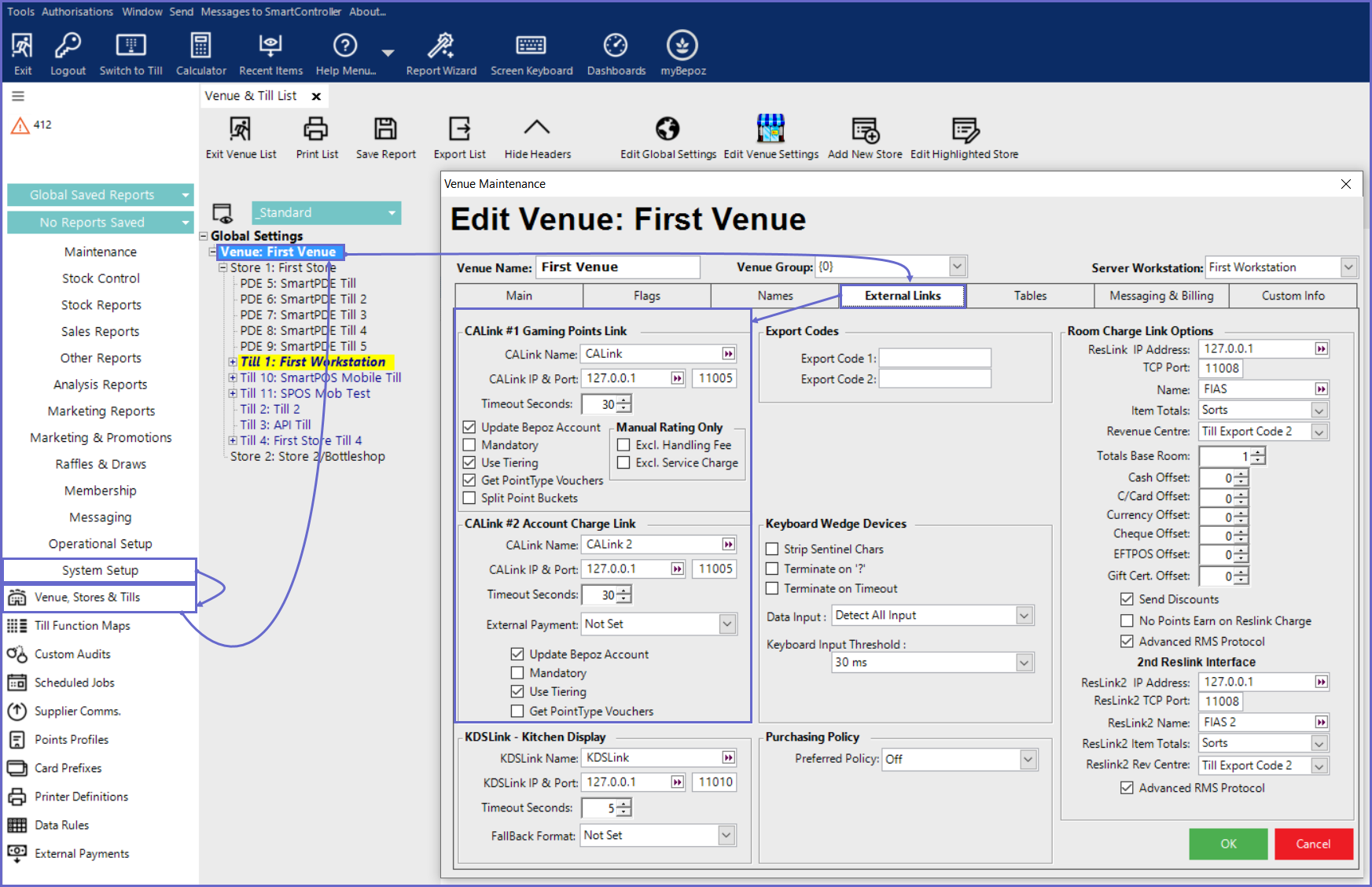

Venue Setup

  • Go to Backoffice > System Setup
  • Select Venue, Stores & Tills, and open Venue Maintenance
  • Select a Venue and open Venue Maintenance
  • In the External Links Tab, set the CALink #1 Gaming Points Link & CALink #2 Accounts Charge Link as follows:

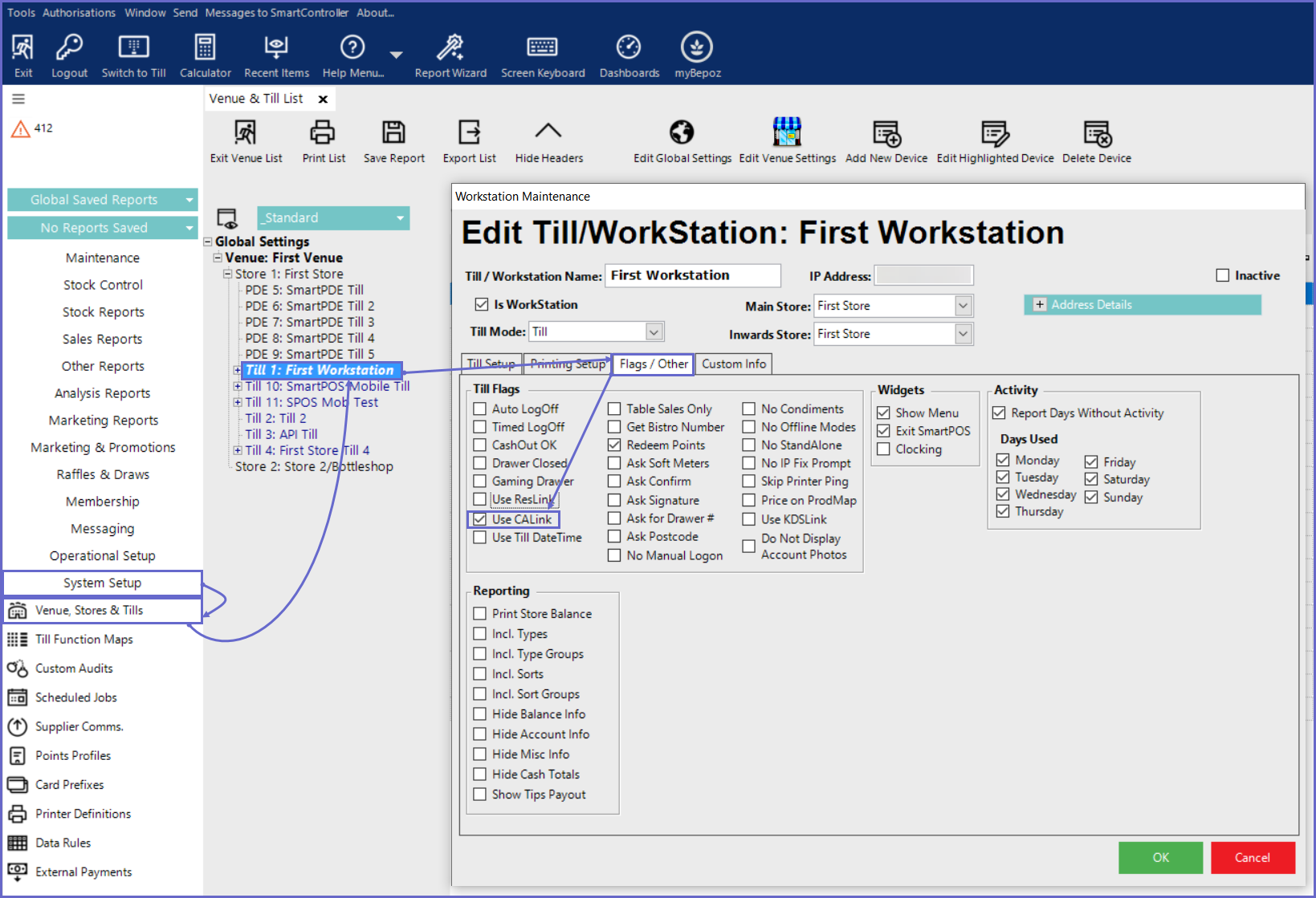

Till/ Workstation Setup

  • Login to Backoffice and go to System Setup
  • Go to Venue, Stores & Tills which will open a window
  • Select a Till and open Workstation Maintenance
  • In the Flags/Other Tab, enable the 'Use CALink' Flag




"n Connect Sync" Scheduled Job

  • Login to Backoffice and go to System Setup
  • Go to Scheduled Jobs and click on Add Job
  • Details are as follows:
    • Job Name: As needed
    • Job Type: External DLL
    • DLL Name: Jobgaming.Dll
    • ClassName: n Connect Sync
    • Schedules: Set as needed
    • Job Options:
      • Use Template Account:
        • If ON: An Account with an Account Number named TEMPLATE will be used as the base settings for the imported accounts
        • If OFF: An Account with an Account Number named TEMPLATE will not be used as the base settings for the imported accounts
      • Use CALink Group Names:
        • If ON: Create Group Names in the same format as CALink
        • If OFF: Groups will be created based on the Import below Group
      • Use Tiering:
        • If ON: Accounts will be created/updated as per their tiers set within Aristocrat nConnect
        • If OFF: Accounts will not be created/updated as per their tiers set within Aristocrat nConnect
      • Debug:
        • If ON: Creates log files within C:/Bepoz/Data/CALink_Logs
        • If OFF: Does not create log files within C:/Bepoz/Data/CALink_Logs
      • API URL: API URL provided by Aristocrat nConnect
      • Identity URL: Identity URL provided by Aristocrat nConnect
      • Version: Version number provided by Aristocrat nConnect
      • Scope: Scope provided by Aristocrat nConnect
      • Client ID: Client ID provided by Aristocrat nConnect
      • Client Secret: Client Secret provided by Aristocrat nConnect
      • Username: Username provided by Aristocrat nConnect
      • Password: Password provided by Aristocrat nConnect
      • Account Group: Account Group where members need to be imported
