6 | Aristocrat S7000 Multi-Points Bucket Setup Guide

This article provides a CALink BackOffice setup guide for the Aristocrat S7000 Interface, specifically the Multi-Points Bucket feature set.

This article provides a CALink & BackOffice setup guide for the Aristocrat S7000 Interface, specifically the Multi-Points Bucket feature set. Prerequisites
  • For an operator to be able to setup Aristocrat S7000 multi-points bucket, the following privileges must be enabled
    • Venue Maintenance "Flags" Tab
      • System Setup: "All System Flags"
CALink Setup

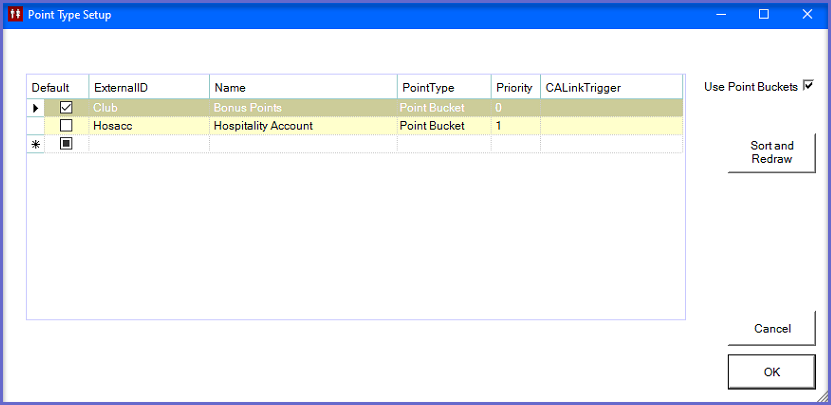

Point Type Setup

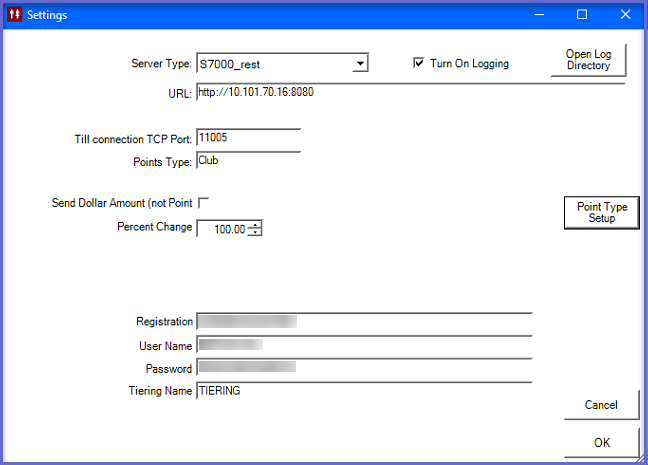

Setting up multiple points bucket begins with the Point Type Setup within the CALink



BackOffice Setup
  • There are mainly two BackOffice setups that need to be configured which allows BackOffice to connect to CALink; these are outlined below:
Venue Setup

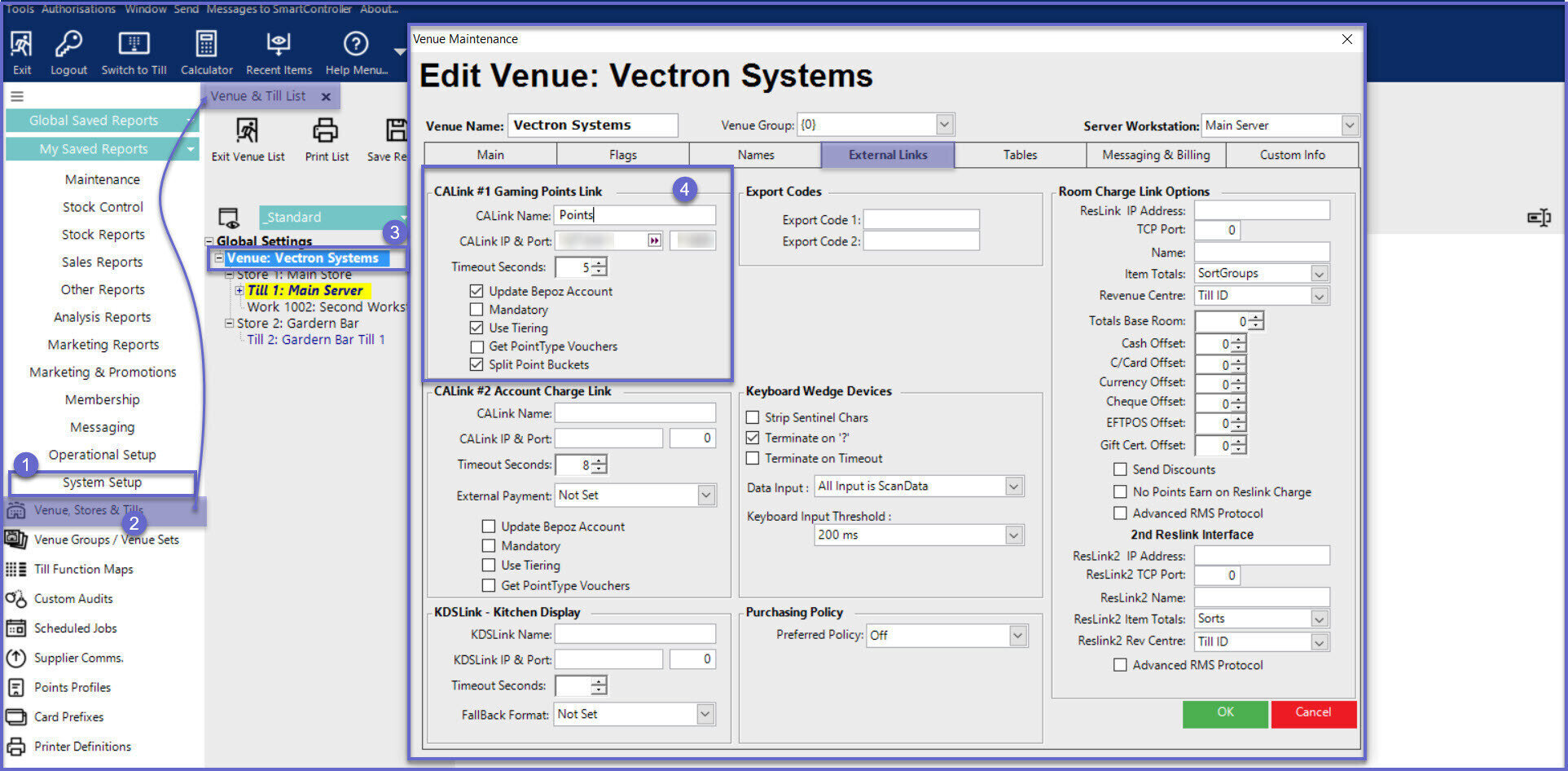

  1. Go to Backoffice > System Setup
  2. Select Venue, Stores & Tills, and open Venue Maintenance
  3. Select a venue and open Venue Maintenance
  4. In the External Links Tab, set the CALink #1 Gaming Points Link as follows:
    • CALink Name: Name of the CALink
    • CALink IP: This is the IP Address of the CALink communication with the Gaming system
    • CALink Port: This is the TCP Port of the CALink communication with the Gaming system
    • Timeout Seconds: Set the timeout seconds as required
    • Enable the flags:
      • Update Bepoz Accounts: Creates a local account within Bepoz based on the account it has received from CALink
      • Use Tiering: When enabled, it gives information of the Bepoz account and gives what tier the member is in
      • Split Point Buckets: When enabled, it redeems from multiple buckets at SmartPOS. It forces SmartPOS to request multiple points bucket from CALink

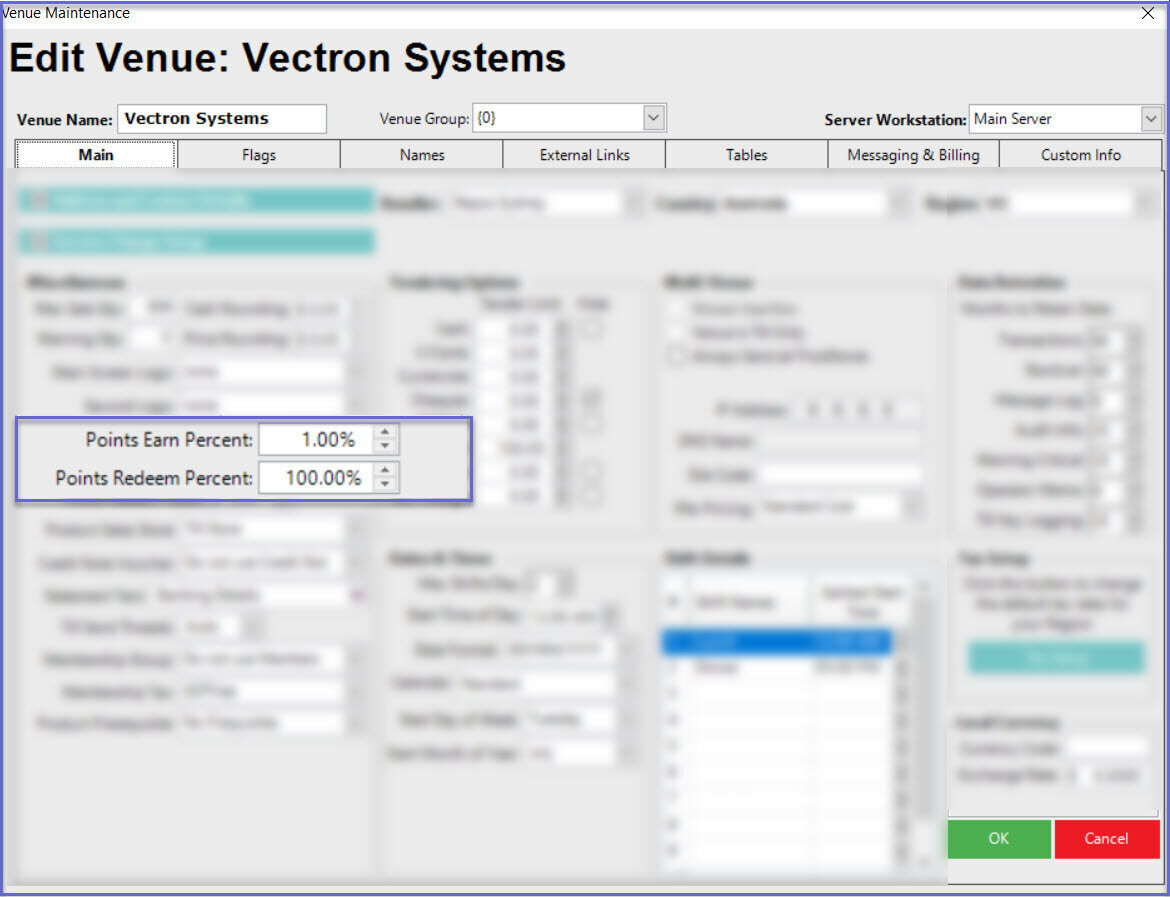

  5. In the Venue Maintenance Main Tab, set the Points Earn Percent to 1.00% and Points Redeem Percent to 100.00%





    Till/Workstation Setup

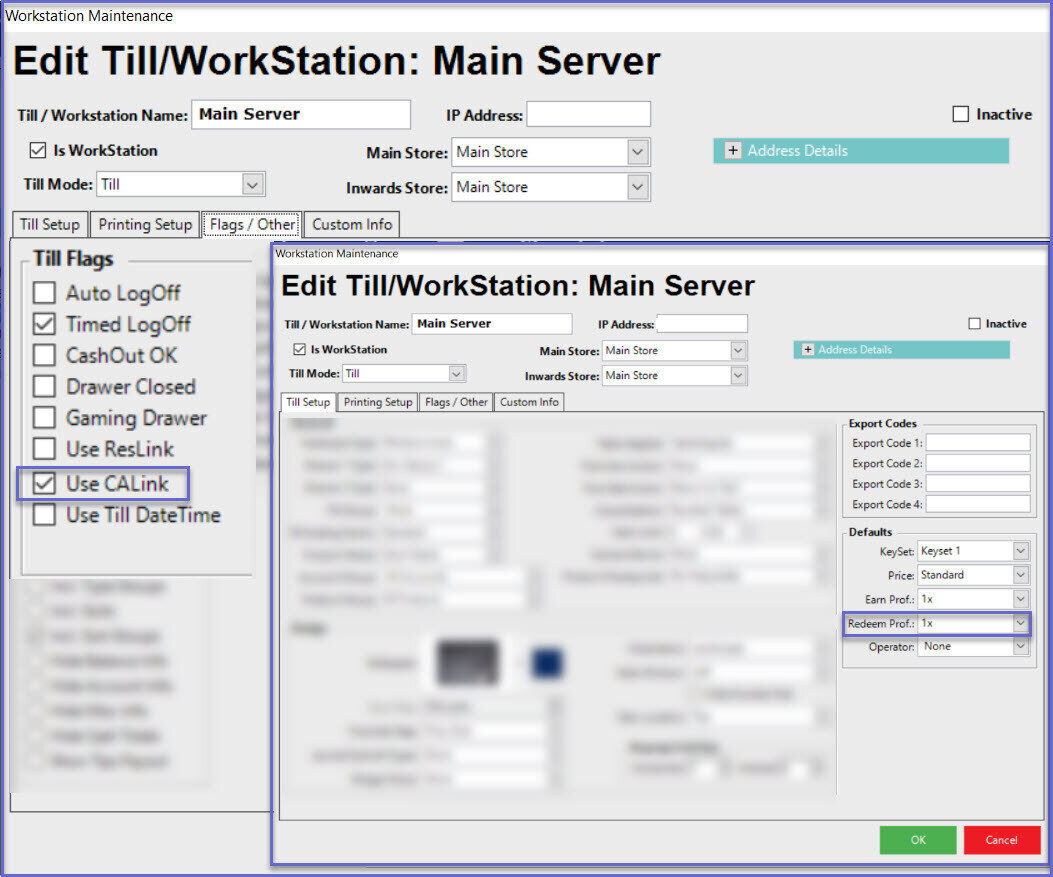

    1. Login to Backoffice and go to System Setup
    2. Go to Venue, Stores & Tills which will open a window
    3. Select a Till and open Workstation Maintenance
    4. In the Flags/Other Tab, enable the 'Use CALink' Flag
    5. In the Till Setup Tab, select the Redeem Profile Default value from the drop down. If there is no Points Profile created, create one  Points Profiles  with 100% points percentage





        Store Maintenance

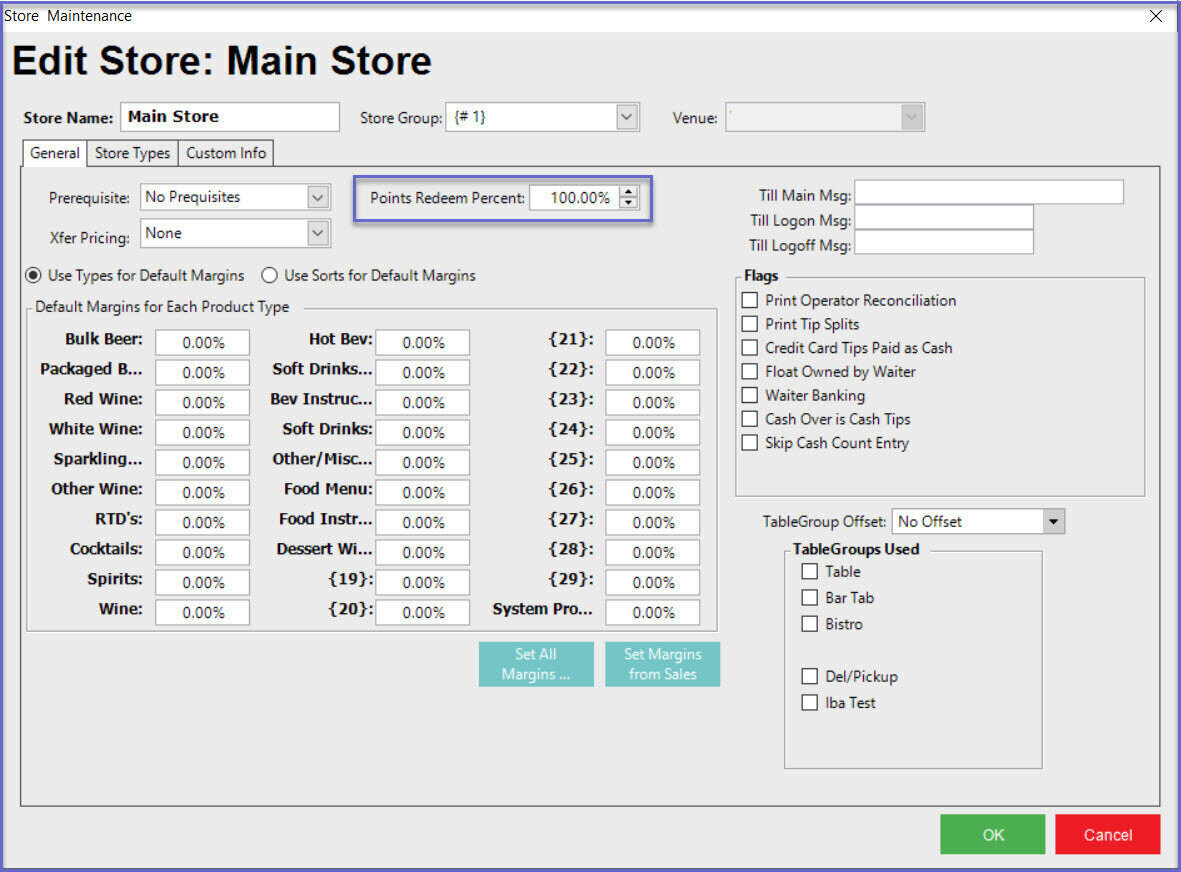

      1. Login to Backoffice and go to System Setup
      2. Go to Venue, Stores & Tills which will open a window
      3. Select a Store and open Store Maintenance
      4. Under Store Maintenance General Tab, set the Points Redeem Percent to 100%
