This page explains the procedure for implementing the Bepoz interface to Assembly Payments.
Assembly is an integrated online payment platform that strives to "help businesses manage multiple payment workflows and move funds, so they can pay and get paid without delays."
The setup for this interface involves configuring an EFTPOS Device as well as SmartPOS setup afterward.
Prerequisites
- To begin the implementation process, the Implementation Operator must have the following privileges enabled:
- Main Tab (General Settings) - Venue Maintenance
- All "System Setup" Flags
Assembly Payments EFTPOS Device
- This EFTPOS Device must be added to each workstation that requires integration to Assembly

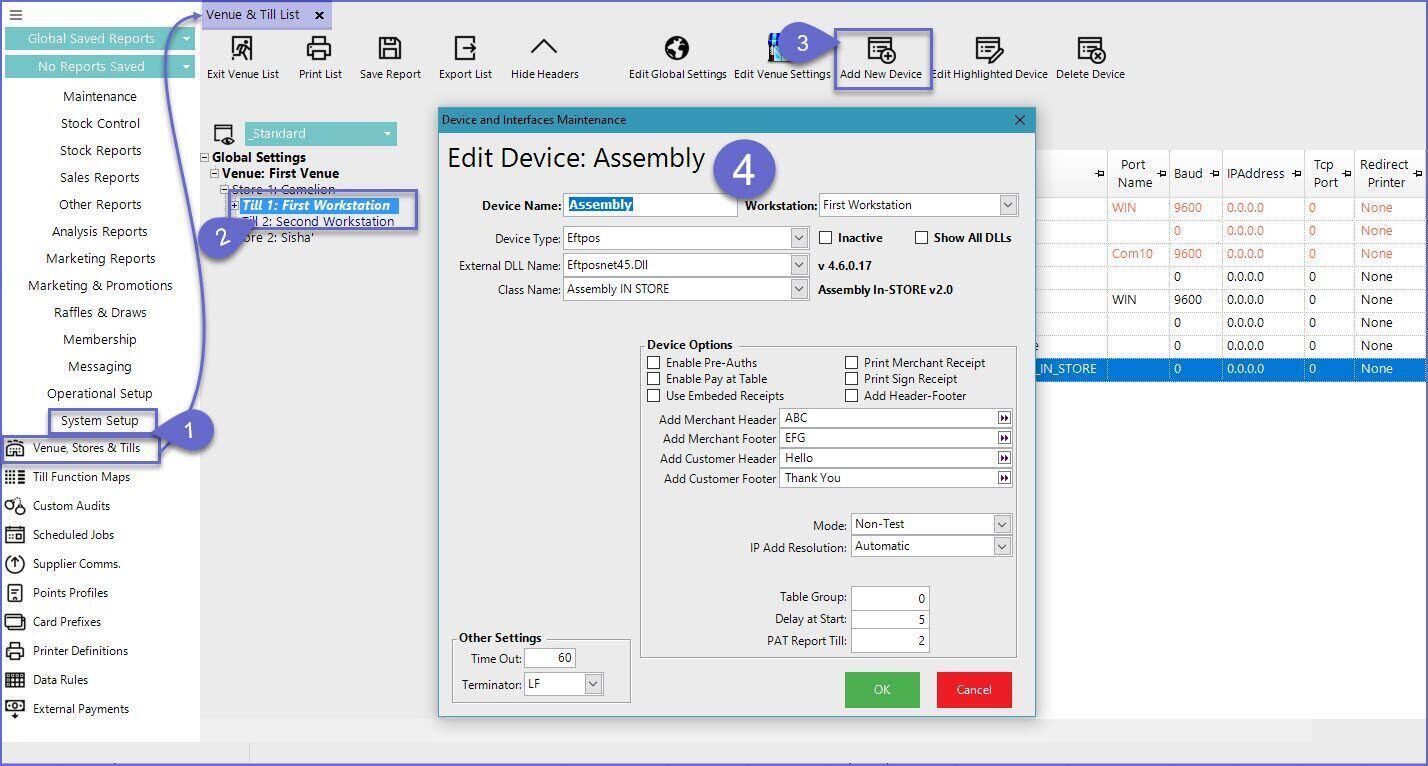

- Please see the image and setup notes below for instructions:
EFTPOS Device Setup Instructions
- After adding a new Device, enter a Device Name and then set it as follows:
- Device Type: EFTPOS
- External DLL Name: Eftposnet45.Dll
- Class Name: Assembly IN STORE
- Set the Device Options as follows:
- Click OK to save the Device
- Repeat these steps for all required Tills
