📄SmartPOS Mobile Theme Configuration

Prerequisites

• Minimum Bepoz version of 4.7.3.x

• Minimum .NET version of 4.8

• The applicable Operator Privileges will need to be enabled:

  • Operator Maintenance 'General' Tab

    • General Settings: "Use BackOffice" Flag

    • System Setup: "Access Venue, Stores & Tills" Flag

    • System Setup: "Maintain Venue, Stores & Tills" Flag

• From the setup made within Workstation Maintenance when creating a SmartPOS Mobile Till to run SmartPOS Mobile application, the Operator is allowed to enable/disable a flag within the SmartAPI tab

• This is the "Allow Operator To Set Own Theme" flag, which when enabled, the Operator can set their own theme within SmartPOS Mobile application

• Note: For more information on how to create a SmartPOS Mobile Till to run SmartPOS Mobile application, please refer article: SmartPOS Mobile Workstation Setup

• If the above-mentioned flag is enabled, then for the Operator to set own theme on the SmartPOS Mobile app, the Operator must follow the corresponding steps:

  • Login to SmartPOS Mobile with a valid Operator Login

  • Press the Products button on the Navigation bar 5 times repeatedly till the Operator sees a dialog box emerge from the bottom of the screen

  • This dialog box will have the Configuration and Theme options

  • The Theme option is a drop-down menu with the current themes name shown

  • To change the theme, the Operator must click on the drop-down menu and choose the desired theme

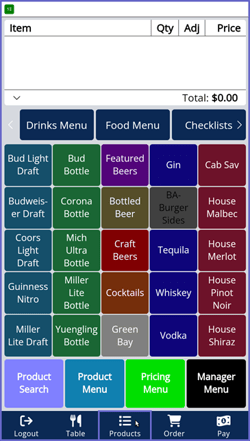

  • Once the theme is selected, the Operator can hit the Close button to return to the Product screen with the desired theme displayed on the app

• To complete the full & correct setup of the SmartPOS Mobile App, the Operator must follow & execute these articles provided in the given chronological order:

  1. SmartPOS Mobile Workstation Setup

  2. SmartPOS Mobile Venue Maintenance Setup

  3. SmartPOS Mobile Till Function Map Setup Guide

  4. SmartAPI Host Usage

  5. SmartPOS Mobile App Configuration Screen
