Prerequisites​​​​​​​
- Access to the Bepoz Server
- Network Share Access
BackOffice Installation
-
From the Workstation, create a Bepoz folder in the local drive.
-

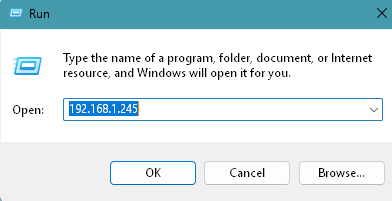

Access the Bepoz Server over the network by clicking on Start and type RUN in the box
-
Type in the Server IP and click OK
The Server share should open in a Window.
-
Copy the Programs and Versions folders to the local Workstation Bepoz folder, as above.
-
Create 3 more New folders, call them NewVersion, Data and Backup
-
Put a shortcut to backoffice on the Desktop of the workstation
Workstation Setup
-
Once the Core Installation of Bepoz has been completed see above link under prerequisites.
-
Run the application shortcut 'BackOffice.exe'.
-

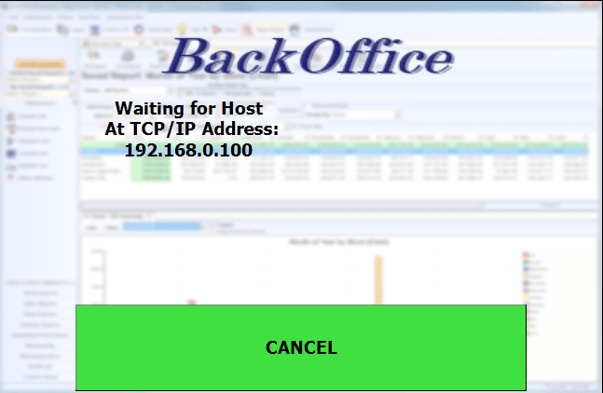

You will be prompted that Backoffice is Waiting for a Host at TCP/IP xxx.xxx.xxx.xxx

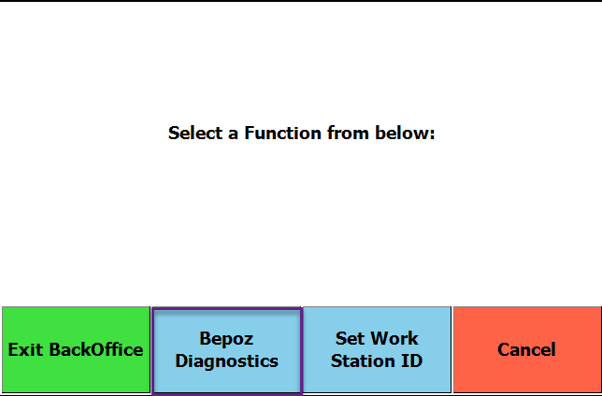

Click on the Cancel button and Select Bepoz Diagnostics
-
This will launch the Diagnostics Utility to be used to set the correct IP address for the Smart controller workstation.
-

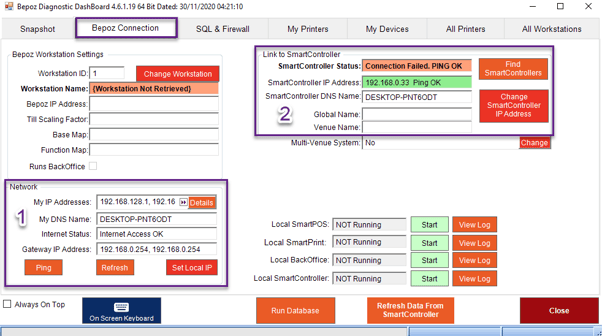

Navigate to Bepoz Connections Tab
-
Within the Network (1) section you can specify the IP address that the Workstation should be using.
-
Within the Smart Controller (2) section, you can specify the IP address that the Workstation should be connecting to.
-
You can find a Smart controller with the 'Find Smart controllers' button - note this can fail to find a smart controller dependent on network security. if Diagnostics cannot automatically find Smart controller you can then select Change Smart controller IP Address and enter in the IP address manually, if a successful connection is made the box will highlight in green.
-

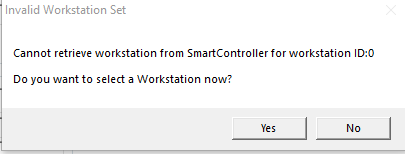

This will prompt for Invalid workstation set, select YES
-

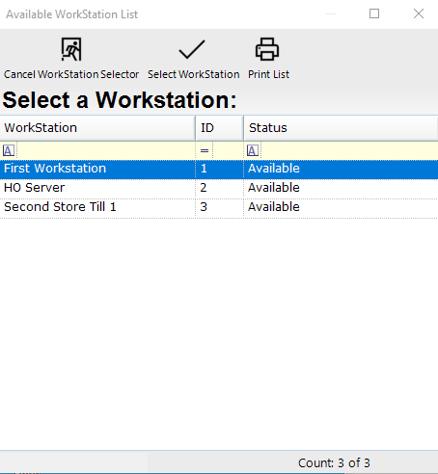

This will then prompt a List of available workstations, select the desired workstation from the List
-

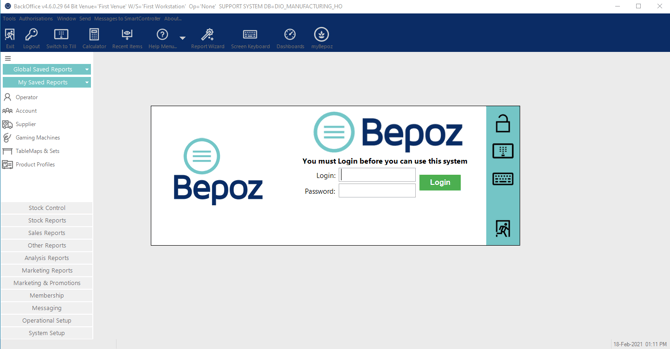

On a successful connection, you will be presented with the following Backoffice login screen.
