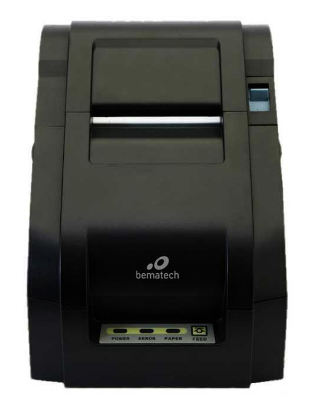

7 | Bematech MP200 Impact Printer

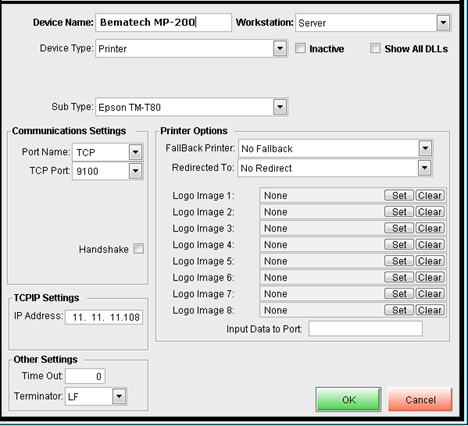

This article contains notes on how to configure a Receipt Printer Device for Model Bematech MP200. NB: While this Printer Hardware can be used along with Bematech KDS, this is not a requirement, and both can function separately. This article is merely a guide for the Printer Device setup, not a comprehensive guide for the Printer Hardware itself.

This article contains notes on how to configure a Receipt Printer Device for Model Bematech MP200.

NB: While this Printer Hardware can be used along with Bematech KDS, this is not a requirement, and both can function separately. This article is merely a guide for the Printer Device setup, not a comprehensive guide for the Printer Hardware itself.

Model



Technical Specifications





Emulation Types



Add the steps involved:

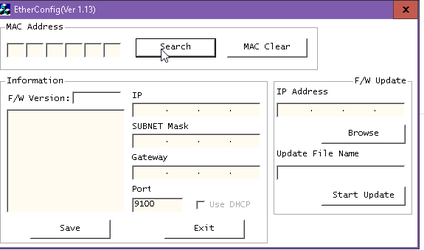

  1. On a computer as the same network as the printer install Ethernet_Interface_Config_Utility.exe
    1. UDP port 27700 must be open
    2. Rarely, if the computer has multiple NIC's, you may need to temporarily disable the other NIC(s) in Device Manager so that EtherConfig uses the correct one to send the discovery broadcast.
  2. Click search
  3. Enter in the IP Address information
  4. Hit Save
  5. Restart the printer ​​​​​​​​​​​​​​
